EPG-003

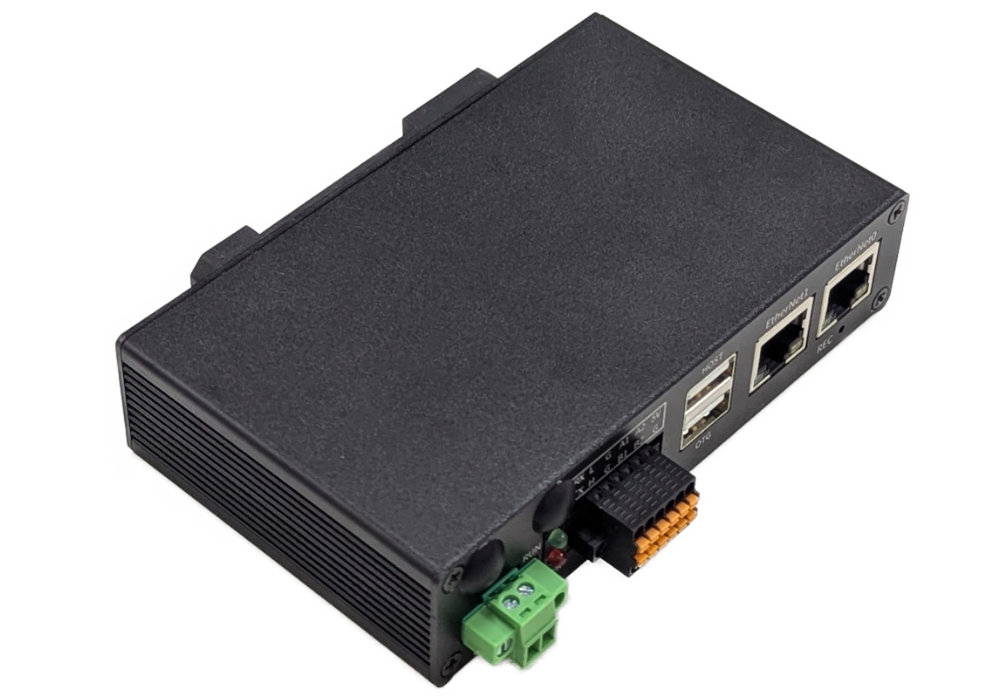

EPG-003: Discover the EPG-003 IIoT Gateway: Engineered to be the heart of your connectivity. With Node-RED and an Intel chip, it offers faster processing speeds, ensuring swift and reliable communication between your devices and systems.

Protocol & Compatibility
Product Specification
Product Overview
Warranty & Others
Specification:
HARDWARE
Memory MAX Support DDR4 8G
Socket DDR4 SODIMM 60 Socket
Graphic controller Intel UHD 600 Graphics
HDMI HDMI(2.0)MAX resolution 4K@60Hz
VGA VGA MAX resolution 1920x1200
USB 4 x USB2.0, 2 x USB3.0 Max support +5V/1A
Physical Ports 1 x HDMI, 2 x USB3.0, 4 x USB2.0, 2 x LAN, 6 x COM
1 x Quick boot button with indicator light, 1 x Reset button, 1 x DC
1 x Power indicator light, 1 x Hard disk indicator light
Communication Ports COM1,2 can be selected as RS232 / RS485 by jumper and BIOS settings,
RS485 supports automatic flow control, COM3,COM4,COM5,COM6 are RS232
SATA 1 standard SATAIII interface with a maximum transfer rate of 6Gb/s
M-SATA 1*Mini-PCIe M-SATA Scoket,Support SANDISK protocol
Power Supply Single input dc power supply,DC12-19V
SOFTWARE
Network Protocol MQTT / HTTP / TCP / UDP / WEBSOCKET
OS Windows10 Linux
BIOS EFI BIOS
VPN Support PLC remote upload and download (Network Port)
Product Brief Info:

EPG-003: Discover the EPG-003 IIoT Gateway: Engineered to be the heart of your connectivity. With Node-RED and an Intel chip, it offers faster processing speeds, ensuring swift and reliable communication between your devices and systems.

Product Serial:

EPG-003

Product Category:
  • IIoT Gateway
  • Soft Router
  • Indoor Gateway
Product Dimension:

  • Length: 134mm

  • Width: 126mm

  • Height: 46.8mm

Warranty Policy

Commodo elit at imperdiet dui accumsan sit amet. Aliquam eleifend . Eu lobortis elementum nibh tellus molestie nunc. A condimentum vitae sapien pellentesque habitant morbi tristique senectus. In ornare quam viverra orci sagittis.

Support Service

Commodo elit at imperdiet dui accumsan sit amet. Aliquam eleifend . Eu lobortis elementum nibh tellus molestie nunc. A condimentum vitae sapien pellentesque habitant morbi tristique senectus. In ornare quam viverra orci sagittis.

Compare Specification:

EPG-003

HARDWARE
Memory MAX Support DDR4 8G
Socket DDR4 SODIMM 60 Socket
Graphic controller Intel UHD 600 Graphics
HDMI HDMI(2.0)MAX resolution 4K@60Hz
VGA VGA MAX resolution 1920x1200
USB 4 x USB2.0, 2 x USB3.0 Max support +5V/1A
Physical Ports 1 x HDMI, 2 x USB3.0, 4 x USB2.0, 2 x LAN, 6 x COM
1 x Quick boot button with indicator light, 1 x Reset button, 1 x DC
1 x Power indicator light, 1 x Hard disk indicator light
Communication Ports COM1,2 can be selected as RS232 / RS485 by jumper and BIOS settings,
RS485 supports automatic flow control, COM3,COM4,COM5,COM6 are RS232
SATA 1 standard SATAIII interface with a maximum transfer rate of 6Gb/s
M-SATA 1*Mini-PCIe M-SATA Scoket,Support SANDISK protocol
Power Supply Single input dc power supply,DC12-19V
SOFTWARE
Network Protocol MQTT / HTTP / TCP / UDP / WEBSOCKET
OS Windows10 Linux
BIOS EFI BIOS
VPN Support PLC remote upload and download (Network Port)

EPM-400

HARDWARE 3 phase 3 wires, 3 phase 4 wires
Reference Voltage 3×100, 3×380V, 3×57.7/100V, 3×220/380V
Consumption(Voltage) <10VA (Single phase)
Impedance >2MΩ
Accuracy Class(Voltage) Error±0.2%
Input Current 3×1(6)A, 3×10(80)A
Consumption(Current) <1VA (Single phase rated current)
Accuracy Class(Current) DC 9~12 V
Power Measurement Active, reactive, apparent power, error±0.5c/o
Frequency Measurement 45~65Hz，Error±0.2%
Energy Measurement Active energy(Accuracy class:0.5, 1) reactive energy(Accuracy class 2)
Width of Pulse 80±20ms
SOFTWARE
Communication RS485:Modbus RTU
Range of Communication Modbus RTU:1~ 247
Baud rate 1200bps~19200bps
